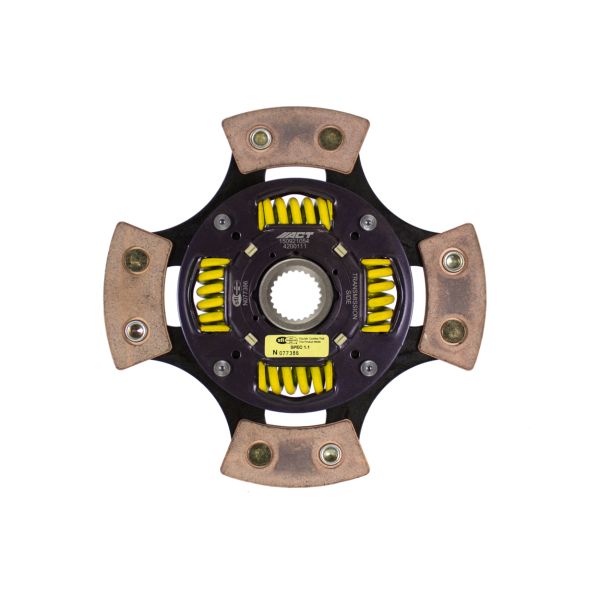

4200111 - ACT 4 Pad Sprung Race Clutch Disc
was
$236.00
Special Price
$200.60
SKU
4200111
Specifications
| Item Description | ACT 4 Pad Sprung Race Clutch Disc |
|---|---|
| Product Weight (lbs.) | 2.6 |
| Disc Material | Ceramic |
| Diameter (Inches) | 7.9 |
| Diameter (Millimeters) | 200 |
| Warranty | 12 Months (view details) |
| SFI | 1.1 |
| UPC | 00842385006389 |
Description
4200111 is a 4-pad spring-centered race disc made with high quality, ceramic friction materials. The engagement is harsher, but shifting is faster. The heavy duty torsional dampening springs are stronger, in most cases, than standard springs and are provided in the best sizes and spring rates to suit the application. The race disc features a heat-treated spring steel drive plate and is well-suited for the smaller disc sizes in smaller engines.
| Feel | Aggressive engagement, quick shifts, OE to mild gear rattle |
|---|---|
| Life | Premium ceramic friction materials provide moderate wear rates and high heat tolerance |
| Quality | Utilizes wraparound spring windows, thicker retainer stampings and a heat-treated, spring steel drive plate to provide support, reduce stress concentrations and increase strength and reliability |
| Recommended Use | Recommended for race use only |
| ACT Difference | High burst strength and holds 28% more torque than typical organic materials |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1983 Honda Accord Base | 1.8 L4 GAS FI 1751cc |
| 1983 Honda Accord LX | 1.8 L4 GAS FI 1751cc |
| 1983 Honda Prelude Base | 1.8 L4 GAS FI 1829cc |
| 1984 Honda Accord Base | 1.8 L4 GAS FI 1829cc |
| 1984 Honda Accord LX | 1.8 L4 GAS FI 1829cc |
| 1984 Honda Prelude Base | 1.8 L4 GAS FI 1829cc |
| 1985 Honda Accord Base | 1.8 L4 GAS FI 1829cc |
| 1985 Honda Accord Base | 1.6 L4 GAS FI 1598cc |
| 1985 Honda Accord LX | 1.8 L4 GAS FI 1829cc |
| 1985 Honda Accord S | 1.8 L4 GAS FI 1829cc |
| 1985 Honda Accord SEi | 1.8 L4 GAS FI 1829cc |
| 1985 Honda Prelude Base | 1.8 L4 GAS FI 1829cc |
| 1986 Acura Integra LS | 1.6 L4 GAS FI 1590cc |
| 1986 Acura Integra RS | 1.6 L4 GAS FI 1590cc |
| 1986 Honda Prelude Base | 1.8 L4 GAS FI 1829cc |
| 1987 Acura Integra LS | 1.6 L4 GAS FI 1590cc |
| 1987 Acura Integra LS Special Edition | 1.6 L4 GAS FI 1590cc |
| 1987 Acura Integra RS | 1.6 L4 GAS FI 1590cc |
| 1987 Honda Prelude Base | 1.8 L4 GAS FI 1829cc |
| 1988 Acura Integra LS | 1.6 L4 GAS FI 1590cc |
| 1988 Acura Integra LS Special Edition | 1.6 L4 GAS FI 1590cc |
| 1988 Acura Integra RS | 1.6 L4 GAS FI 1590cc |
| 1988 Honda CRX DX | 1.5 L4 GAS FI 1493cc | SOHC |
| 1988 Honda CRX HF | 1.5 L4 GAS FI 1493cc | SOHC |
| 1988 Honda CRX Si | 1.6 L4 GAS FI 1588cc | SOHC |
| 1988 Honda Civic Base | 1.5 L4 GAS FI 1493cc | SOHC |
| 1988 Honda Civic DX | 1.5 L4 GAS FI 1493cc | SOHC |
| 1988 Honda Civic LX | 1.5 L4 GAS FI 1493cc | SOHC |
| 1988 Honda Civic RT 4WD | 1.6 L4 GAS FI 1588cc | SOHC |
| 1988 Honda Civic Wagovan | 1.5 L4 GAS FI 1493cc | SOHC |
| 1989 Acura Integra LS | 1.6 L4 GAS FI 1590cc |
| 1989 Acura Integra RS | 1.6 L4 GAS FI 1590cc |
Frequently Asked Questions
- Can an ACT Race puck-style disc be used for daily driving, and is it recommended?
- ACT's race discs are very aggressive and provide no-nonsense performance response. As a result, the engagement is harsh. Taking off from a stop can cause judder and/or an uncomfortable noise. These characteristics have no effect on the performance on the clutch or the drive line components. This type of disc should only be used in a professional race setting and never on the street. ACT always recommends using an organic disc on the street because it offers a smoother engagement and a longer lasting performance value for everyday drivers.
- When should a clutch disc be replaced?
- The majority of new discs measure .312-.315” (7.93 – 8.00mm) thick – fully worn is .275” (7.00mm) or below. A few applications (mostly Audi and BMW) start out at .332 - .335” (8.43 – 8.50mm). These are to be replaced when below .295” (7.50mm). It’s best to measure with a micrometer. Puck discs are measured as-is, where organic street discs are correctly measured by fully compressing the engagement cushion (marcel) between the linings. If the lining rivets on either side of the disc have made contact with the flywheel or pressure plate face, the disc must be replaced. Note: Using a disc that is thicker or thinner than the working range the pressure plate is designed for will have varying, and often very poor, results.
