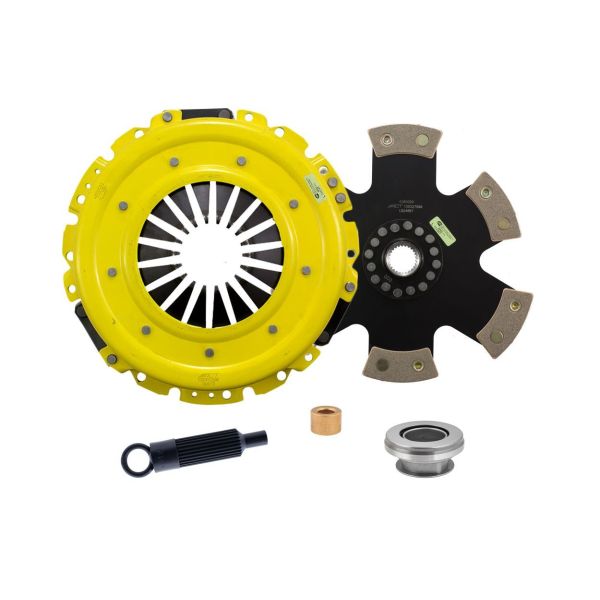

GM6-HDR6 - ACT Heavy Duty Race Rigid 6 Pad Clutch Kit
was
$684.00
Special Price
$581.40
SKU
GM6-HDR6
Specifications
| Item Description | ACT Heavy Duty Race Rigid 6 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 28.2 |
| Torque Capacity (ft/lbs.) | 908 |
| Torque Capacity Over OE | 56% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 11 |
| Clutch Disc Diameter (Millimeters) | 280 |
| Input Shaft Diameter (inches) | 1.125 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| UPC | 00842385013158 |
Description
GM6-HDR6 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.
| Feel | Light to moderate pedal effort, aggressive engagement, increased gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for race use only |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1970 Chevrolet Chevelle SS 454 | 7.4 V8 GAS FI 7439cc | OHV |
| 1970 Chevrolet Corvette Base | 7.4 V8 GAS FI 7439cc | OHV |
| 1970 Chevrolet Corvette Base | 7.4 V8 GAS FI 7441cc | OHV |
| 1971 Chevrolet Bel Air Base | 5.7 V8 GAS FI | OHV |
| 1971 Chevrolet Biscayne Base | 5.7 V8 GAS FI | OHV | Naturally Aspirated |
| 1971 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1971 Chevrolet Camaro RS | 5.7 V8 GAS FI | OHV |
| 1971 Chevrolet Camaro SS | 5.7 V8 GAS FI | OHV |
| 1971 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1971 Chevrolet Chevelle SS | 7.4 V8 GAS FI 7439cc | OHV |
| 1971 Chevrolet Corvette Base | 7.4 V8 GAS FI 7439cc | OHV |
| 1971 Chevrolet Corvette Base | 7.4 V8 GAS FI 7441cc | OHV |
| 1971 Chevrolet Impala Base | 5.7 V8 GAS FI | OHV |
| 1971 Oldsmobile Cutlass Base | 5.7 V8 GAS FI | OHV |
| 1971 Pontiac GTO Base | 7.5 V8 GAS FI 7456cc | OHV |
| 1972 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1972 Chevrolet Camaro RS | 5.7 V8 GAS FI | OHV |
| 1972 Chevrolet Camaro SS | 5.7 V8 GAS FI | OHV |
| 1972 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1972 Chevrolet Chevelle SS | 7.4 V8 GAS FI 7439cc | OHV |
| 1972 Chevrolet Corvette Base | 7.4 V8 GAS FI 7439cc | OHV |
| 1972 Chevrolet Corvette Base | 7.4 V8 GAS FI 7441cc | OHV |
| 1972 Oldsmobile Cutlass Base | 5.7 V8 GAS FI | OHV |
| 1973 Buick Regal Base | 7.5 V8 GAS FI 7456cc | OHV |
| 1973 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1973 Chevrolet Camaro LT | 5.7 V8 GAS FI | OHV |
| 1973 Chevrolet Camaro RS | 5.7 V8 GAS FI | OHV |
| 1973 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1973 Chevrolet Corvette Base | 7.4 V8 GAS FI 7439cc | OHV |
| 1973 Chevrolet Corvette Base | 7.4 V8 GAS FI 7441cc | OHV |
| 1973 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1973 Pontiac Firebird Base | 7.5 V8 GAS FI 7456cc | OHV |
| 1974 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1974 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1974 Chevrolet Corvette Base | 7.4 V8 GAS FI 7439cc | OHV |
| 1974 Chevrolet Corvette Base | 7.4 V8 GAS FI 7441cc | OHV |
| 1974 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1974 Pontiac Firebird Base | 7.5 V8 GAS FI 7456cc | OHV |
| 1975 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1975 Chevrolet Camaro LT | 5.7 V8 GAS FI | OHV |
| 1975 Chevrolet Camaro RS | 5.7 V8 GAS FI | OHV |
| 1975 Chevrolet Corvette Stingray | 5.7 V8 GAS FI | OHV |
| 1975 Pontiac Firebird Trans Am | 7.5 V8 GAS FI 7456cc | OHV |
| 1976 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1976 Chevrolet Camaro LT | 5.7 V8 GAS FI | OHV |
| 1976 Chevrolet Camaro LT Rally Sport | 5.7 V8 GAS FI | OHV |
| 1976 Chevrolet Camaro Rally Sport | 5.7 V8 GAS FI | OHV |
| 1976 Chevrolet Corvette Stingray | 5.7 V8 GAS FI | OHV |
| 1976 Pontiac Firebird Trans Am | 7.5 V8 GAS FI 7456cc | OHV |
| 1977 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1977 Chevrolet Camaro LT | 5.7 V8 GAS FI | OHV |
| 1977 Chevrolet Camaro LT Rally Sport | 5.7 V8 GAS FI | OHV |
| 1977 Chevrolet Camaro Rally Sport | 5.7 V8 GAS FI | OHV |
| 1977 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1977 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Camaro LT | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Camaro LT Rally Sport | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Camaro Rally Sport | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Corvette Indianapolis 500 Pace Car | 5.7 V8 GAS FI | OHV |
| 1978 Chevrolet Corvette Silver Anniversary Edition | 5.7 V8 GAS FI | OHV |
| 1979 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1979 Chevrolet Camaro Berlinetta | 5.7 V8 GAS FI | OHV |
| 1979 Chevrolet Camaro Rally Sport | 5.7 V8 GAS FI | OHV |
| 1979 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1979 Chevrolet Corvette Base | 5.7 V8 GAS FI 5733cc | OHV |
| 1979 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1980 Chevrolet Camaro Base | 5.7 V8 GAS FI | OHV |
| 1980 Chevrolet Camaro Berlinetta | 5.7 V8 GAS FI | OHV |
| 1980 Chevrolet Camaro Rally Sport | 5.7 V8 GAS FI | OHV |
| 1980 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1980 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1981 Chevrolet Camaro Berlinetta | 5.7 V8 GAS FI | OHV |
| 1981 Chevrolet Camaro Sport | 5.7 V8 GAS FI | OHV |
| 1981 Chevrolet Camaro Z28 | 5.7 V8 GAS FI | OHV |
| 1981 Chevrolet Camaro Z28 | 5.0 V8 GAS FI | OHV |
| 1981 Chevrolet Corvette Base | 5.7 V8 GAS FI | OHV |
| 1981 Pontiac Firebird Formula | 5.0 V8 GAS FI | OHV |
| 1981 Pontiac Firebird Trans Am | 5.0 V8 GAS FI | OHV |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
