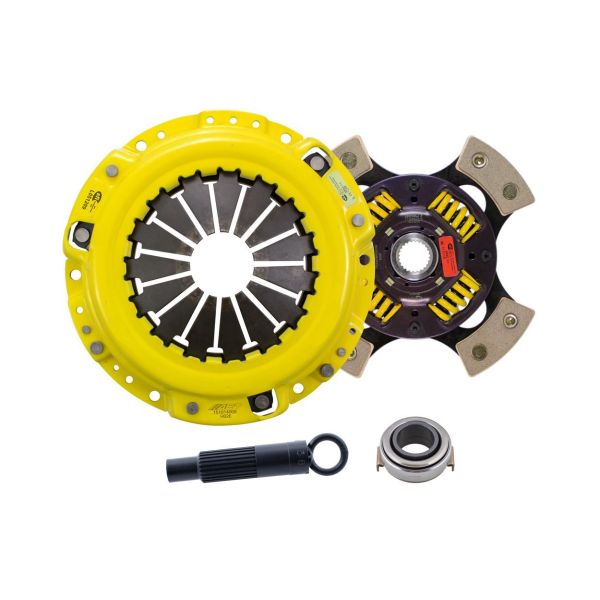

HA3-HDG4 - ACT Heavy Duty Race Sprung 4 Pad Clutch Kit
was
$629.00
Special Price
$534.65
SKU
HA3-HDG4
Also Available:
Specifications
| Item Description | ACT Heavy Duty Race Sprung 4 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 13.0 |
| Torque Capacity (ft/lbs.) | 355 |
| Torque Capacity Over OE | 80% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 224 |
| Input Shaft Diameter (inches) | 1.03125 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| UPC | 00842385004460 |
Description
HA3-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
| Feel | Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1990 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1990 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1990 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1991 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1991 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1991 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1991 Honda Accord SE | 2.2 L4 GAS FI 2156cc |
| 1992 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1992 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1992 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1992 Honda Prelude S | 2.2 L4 GAS FI 2156cc |
| 1992 Honda Prelude Si | 2.3 L4 GAS FI 2259cc |
| 1992 Honda Prelude Si 4WS | 2.3 L4 GAS FI 2259cc |
| 1993 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1993 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1993 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1993 Honda Prelude S | 2.2 L4 GAS FI 2156cc |
| 1993 Honda Prelude Si | 2.3 L4 GAS FI 2259cc |
| 1993 Honda Prelude Si 4WS | 2.3 L4 GAS FI 2259cc |
| 1993 Honda Prelude VTEC | 2.2 L4 GAS FI 2156cc |
| 1994 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1994 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1994 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1994 Honda Prelude S | 2.2 L4 GAS FI 2156cc |
| 1994 Honda Prelude Si | 2.3 L4 GAS FI 2259cc |
| 1994 Honda Prelude Si 4WS | 2.3 L4 GAS FI 2259cc |
| 1994 Honda Prelude VTEC | 2.2 L4 GAS FI 2156cc |
| 1995 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1995 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1995 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1995 Honda Prelude S | 2.2 L4 GAS FI 2156cc |
| 1995 Honda Prelude SE | 2.3 L4 GAS FI 2259cc |
| 1995 Honda Prelude Si | 2.3 L4 GAS FI 2259cc |
| 1995 Honda Prelude VTEC | 2.2 L4 GAS FI 2156cc |
| 1996 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1996 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1996 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1996 Honda Prelude S | 2.2 L4 GAS FI 2156cc |
| 1996 Honda Prelude Si | 2.3 L4 GAS FI 2259cc |
| 1996 Honda Prelude VTEC | 2.2 L4 GAS FI 2156cc |
| 1997 Acura CL Base | 2.2 L4 GAS FI 2156cc | SOHC |
| 1997 Acura CL Premium | 2.2 L4 GAS FI 2156cc | SOHC |
| 1997 Honda Accord DX | 2.2 L4 GAS FI 2156cc |
| 1997 Honda Accord EX | 2.2 L4 GAS FI 2156cc |
| 1997 Honda Accord LX | 2.2 L4 GAS FI 2156cc |
| 1997 Honda Prelude Base | 2.2 L4 GAS FI 2156cc |
| 1997 Honda Prelude Type SH | 2.2 L4 GAS FI 2156cc |
| 1998 Acura CL Base | 2.3 L4 GAS FI 2254cc | SOHC |
| 1998 Acura CL Premium | 2.3 L4 GAS FI 2254cc | SOHC |
| 1998 Honda Accord DX | 2.3 L4 GAS FI 2254cc |
| 1998 Honda Accord EX | 2.3 L4 GAS FI 2254cc |
| 1998 Honda Accord LX | 2.3 L4 GAS FI 2254cc |
| 1998 Honda Prelude Base | 2.2 L4 GAS FI 2156cc |
| 1998 Honda Prelude Type SH | 2.2 L4 GAS FI 2156cc |
| 1999 Acura CL Premium | 2.3 L4 GAS FI 2254cc | SOHC |
| 1999 Honda Accord DX | 2.3 L4 GAS FI 2254cc |
| 1999 Honda Accord EX | 2.3 L4 GAS FI 2254cc |
| 1999 Honda Accord LX | 2.3 L4 GAS FI 2254cc |
| 1999 Honda Prelude Base | 2.2 L4 GAS FI 2156cc |
| 1999 Honda Prelude Type SH | 2.2 L4 GAS FI 2156cc |
| 2000 Honda Accord DX | 2.3 L4 GAS FI 2254cc |
| 2000 Honda Accord EX | 2.3 L4 GAS FI 2254cc |
| 2000 Honda Accord LX | 2.3 L4 GAS FI 2254cc |
| 2000 Honda Prelude Base | 2.2 L4 GAS FI 2156cc |
| 2000 Honda Prelude Type SH | 2.2 L4 GAS FI 2156cc |
| 2001 Honda Accord DX | 2.3 L4 GAS FI 2254cc |
| 2001 Honda Accord EX | 2.3 L4 GAS FI 2254cc |
| 2001 Honda Accord LX | 2.3 L4 GAS FI 2254cc |
| 2001 Honda Prelude Base | 2.2 L4 GAS FI 2156cc |
| 2001 Honda Prelude Type SH | 2.2 L4 GAS FI 2156cc |
| 2002 Honda Accord DX | 2.3 L4 GAS FI 2254cc |
| 2002 Honda Accord EX | 2.3 L4 GAS FI 2254cc |
| 2002 Honda Accord LX | 2.3 L4 GAS FI 2254cc |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
