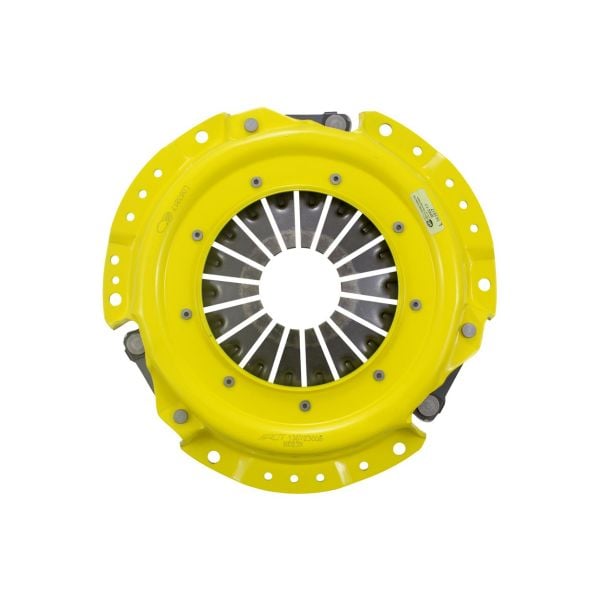

N023X - ACT Extreme Clutch Pressure Plate
was
$373.00
Special Price
$317.05
SKU
N023X
Specifications
| Item Description | ACT Extreme Clutch Pressure Plate |
|---|---|
| Product Weight (lbs.) | 10.8 |
| Diameter (Inches) | 8.8 |
| Diameter (Millimeters) | 224 |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months (view details) |
| SFI | 1.1 |
| UPC | 00837055001122 |
Description
N023X is an ACT Xtreme pressure plate that uses exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's Xtreme pressure plates increase clamp load by 50 to 120 percent. Xtreme pressure plates are recommended for use with a street or race disc.
| Feel | Moderate to heavy pedal effort, positive engagement |
|---|---|
| Life | Available life extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered for improved durability, precisely assembled, accurately balanced |
| Recommended Use | Recommended for street and race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1975 Nissan 280Z Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1975 Nissan 620 Base | 2.0 L4 GAS FI 1952cc | SOHC |
| 1976 Nissan 280Z Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1976 Nissan 620 Base | 2.0 L4 GAS FI 1952cc | SOHC |
| 1977 Nissan 280Z Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1977 Nissan 620 Base | 2.0 L4 GAS FI 1952cc | SOHC |
| 1978 Nissan 280Z Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1978 Nissan 620 Base | 2.0 L4 GAS FI 1952cc | SOHC |
| 1979 Nissan 280ZX Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1979 Nissan 620 Base | 2.0 L4 GAS FI 1952cc | SOHC |
| 1980 Nissan 280ZX Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1980 Nissan 280ZX GL | 2.8 L6 GAS FI 2753cc | SOHC |
| 1980 Nissan 720 Base | 2.0 L4 GAS FI 1952cc | SOHC |
| 1980 Nissan 720 Deluxe | 2.0 L4 GAS FI 1952cc | SOHC |
| 1981 Nissan 280ZX Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1981 Nissan 280ZX GL | 2.8 L6 GAS FI 2753cc | SOHC |
| 1981 Nissan 720 Base | 2.2 L4 GAS FI 2187cc | SOHC |
| 1981 Nissan 720 Deluxe | 2.2 L4 GAS FI 2164cc | OHV |
| 1981 Nissan 720 Deluxe | 2.2 L4 GAS FI 2187cc | SOHC |
| 1982 Nissan 280ZX Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1982 Nissan 720 Base | 2.2 L4 GAS FI 2187cc | SOHC |
| 1982 Nissan 720 Deluxe | 2.2 L4 GAS FI 2164cc | OHV |
| 1982 Nissan 720 Deluxe | 2.2 L4 GAS FI 2187cc | SOHC |
| 1982 Nissan Maxima GL | 2.8 L6 GAS FI 2793cc | SOHC |
| 1982 Nissan Maxima GL | 2.4 L6 GAS FI 2393cc | SOHC |
| 1983 Nissan 280ZX Base | 2.8 L6 GAS FI 2753cc | SOHC |
| 1983 Nissan 720 Base | 2.2 L4 GAS FI 2187cc | SOHC |
| 1983 Nissan 720 Deluxe | 2.2 L4 GAS FI 2164cc | OHV |
| 1983 Nissan 720 Deluxe | 2.5 L4 GAS FI 2488cc | OHV |
| 1983 Nissan 720 Deluxe | 2.2 L4 GAS FI 2187cc | SOHC |
| 1983 Nissan Maxima GL | 2.8 L6 GAS FI 2793cc | SOHC |
| 1983 Nissan Maxima GL | 2.4 L6 GAS FI 2393cc | SOHC |
| 1984 Nissan 720 Deluxe | 2.5 L4 GAS FI 2488cc | OHV |
| 1984 Nissan Maxima GL | 2.4 L6 GAS FI 2393cc | SOHC |
| 1985 Nissan 720 Deluxe | 2.5 L4 GAS FI 2488cc | OHV |
| 1986 Nissan 720 Deluxe | 2.5 L4 GAS FI 2488cc | OHV |
| 1989 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1989 Nissan 240SX XE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1990 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1990 Nissan 240SX XE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1990 Nissan Axxess SE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1990 Nissan Axxess XE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1990 Nissan Stanza GXE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1990 Nissan Stanza XE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1991 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1991 Nissan 240SX LE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1991 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1991 Nissan Stanza GXE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1991 Nissan Stanza XE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1992 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1992 Nissan 240SX LE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1992 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1992 Nissan Stanza GXE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1992 Nissan Stanza SE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1992 Nissan Stanza XE | 2.4 L4 GAS FI 2389cc | SOHC |
| 1993 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1993 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1994 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1995 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1995 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1996 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1996 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1997 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1997 Nissan 240SX LE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1997 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1998 Nissan 240SX Base | 2.4 L4 GAS FI 2389cc | DOHC |
| 1998 Nissan 240SX LE | 2.4 L4 GAS FI 2389cc | DOHC |
| 1998 Nissan 240SX SE | 2.4 L4 GAS FI 2389cc | DOHC |
