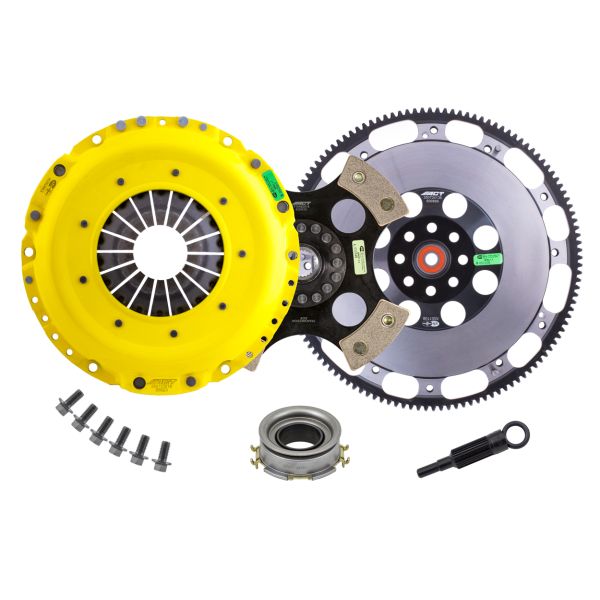

SB8-XTR4 - ACT Extreme Race Rigid 4 Pad Clutch Kit
Note: Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M10-1.0 x 25mm). Pressure plate bolts included (M8-1.25 x 16mm).
was
$1,098.00
Special Price
$933.30
SKU
SB8-XTR4
Specifications
| Item Description | ACT Extreme Race Rigid 4 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 23.4 |
| Torque Capacity (ft/lbs.) | 556 |
| Torque Capacity Over OE | 241% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 224 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Xtreme |
| Flywheel Type | Prolite |
| Warranty | 12 Months (view details) |
| UPC | 00842385022150 |
Description
SB8-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
| Feel | Moderate to heavy pedal effort, aggressive engagement, increased gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for race use only |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 2013 Scion FR-S Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2013 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2013 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2013 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2013 Subaru BRZ Sport-tech | 2.0 H4 GAS FI 1998cc | DOHC |
| 2014 Scion FR-S Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2014 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2014 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2014 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2014 Subaru BRZ Sport-tech | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Scion FR-S Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Subaru BRZ Aozora Edition | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Subaru BRZ Series.Blue | 2.0 H4 GAS FI 1998cc | DOHC |
| 2015 Subaru BRZ Sport-tech | 2.0 H4 GAS FI 1998cc | DOHC |
| 2016 Scion FR-S Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2016 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2016 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2016 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2016 Subaru BRZ Series.HyperBlue | 2.0 H4 GAS FI 1998cc | DOHC |
| 2016 Subaru BRZ Sport-tech | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Subaru BRZ Series.Yellow | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Subaru BRZ Sport-tech | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Toyota 86 Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2017 Toyota 86 Special Edition | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Subaru BRZ Sport-tech | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Subaru BRZ Sport-tech RS | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Subaru BRZ TS | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Toyota 86 Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2018 Toyota 86 GT | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Subaru BRZ Premium | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Subaru BRZ Series.Gray | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Subaru BRZ Sport-tech RS | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Toyota 86 Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Toyota 86 GT | 2.0 H4 GAS FI 1998cc | DOHC |
| 2019 Toyota 86 TRD Special Edition | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Subaru BRZ Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Subaru BRZ Limited | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Subaru BRZ Sport-tech RS | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Subaru BRZ TS | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Toyota 86 Base | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Toyota 86 GT | 2.0 H4 GAS FI 1998cc | DOHC |
| 2020 Toyota 86 Hakone Edition | 2.0 H4 GAS FI 1998cc | DOHC |
| 2013 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2014 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2015 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2016 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2017 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2018 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2019 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
| 2020 Toyota 86 2.0L [JDM] | 2.0L H4 FI| NA |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
