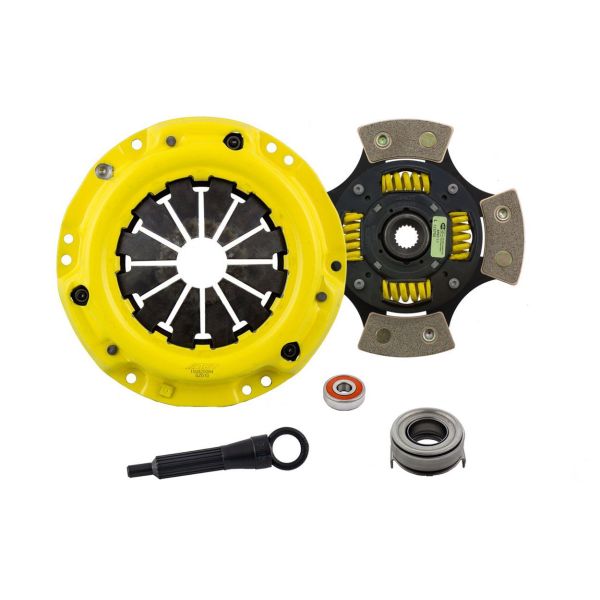

SZ1-HDG4 - ACT Heavy Duty Race Sprung 4 Pad Clutch Kit
was
$595.00
Special Price
$505.75
SKU
SZ1-HDG4
Specifications
| Item Description | ACT Heavy Duty Race Sprung 4 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 8.9 |
| Torque Capacity (ft/lbs.) | 225 |
| Torque Capacity Over OE | 92% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 7.5 |
| Clutch Disc Diameter (Millimeters) | 190 |
| Input Shaft Diameter (inches) | 0.75 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| UPC | 00842385005672 |
Description
SZ1-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
| Feel | Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1987 Chevrolet Sprint Base | 1.0 L3 GAS FI 993cc | SOHC | Turbocharged |
| 1987 Chevrolet Sprint Metro | 1.0 L3 GAS FI 993cc | SOHC | Turbocharged |
| 1987 Chevrolet Sprint Turbo | 1.0 L3 GAS FI 993cc | SOHC | Turbocharged |
| 1988 Chevrolet Sprint Base | 1.0 L3 GAS FI 993cc | SOHC | Turbocharged |
| 1988 Chevrolet Sprint Metro | 1.0 L3 GAS FI 993cc | SOHC | Turbocharged |
| 1988 Chevrolet Sprint Turbo | 1.0 L3 GAS FI 993cc | SOHC | Turbocharged |
| 1989 Suzuki Swift GLX | 1.3 L4 GAS FI 1298cc | SOHC |
| 1989 Suzuki Swift GTI | 1.3 L4 GAS FI 1298cc | DOHC |
| 1990 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 1990 Suzuki Swift GL | 1.3 L4 GAS FI 1298cc | SOHC |
| 1990 Suzuki Swift GLX | 1.3 L4 GAS FI 1298cc | SOHC |
| 1990 Suzuki Swift GS | 1.3 L4 GAS FI 1298cc | SOHC |
| 1990 Suzuki Swift GT | 1.3 L4 GAS FI 1298cc | DOHC |
| 1990 Suzuki Swift L | 1.3 L4 GAS FI 1298cc | SOHC |
| 1990 Suzuki Swift S | 1.3 L4 GAS FI 1298cc | SOHC |
| 1991 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 1991 Suzuki Swift GS | 1.3 L4 GAS FI 1298cc | SOHC |
| 1991 Suzuki Swift GT | 1.3 L4 GAS FI 1298cc | DOHC |
| 1992 Geo Metro LSi | 1.3 L4 GAS FI 1298cc |
| 1992 Geo Metro XFi | 1.3 L4 GAS FI 1298cc |
| 1992 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 1992 Suzuki Swift GS | 1.3 L4 GAS FI 1298cc | SOHC |
| 1992 Suzuki Swift GT | 1.3 L4 GAS FI 1298cc | DOHC |
| 1993 Geo Metro Base | 1.3 L4 GAS FI 1298cc |
| 1993 Geo Metro LSi | 1.3 L4 GAS FI 1298cc |
| 1993 Geo Metro XFi | 1.3 L4 GAS FI 1298cc |
| 1993 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 1993 Suzuki Swift GS | 1.3 L4 GAS FI 1298cc | SOHC |
| 1993 Suzuki Swift GT | 1.3 L4 GAS FI 1298cc | DOHC |
| 1994 Geo Metro Base | 1.3 L4 GAS FI 1298cc |
| 1994 Geo Metro LSi | 1.3 L4 GAS FI 1298cc |
| 1994 Geo Metro XFi | 1.3 L4 GAS FI 1298cc |
| 1994 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 1994 Suzuki Swift GS | 1.3 L4 GAS FI 1298cc | SOHC |
| 1994 Suzuki Swift GT | 1.3 L4 GAS FI 1298cc | DOHC |
| 1995 Geo Metro Base | 1.3 L4 GAS FI 1295cc |
| 1995 Geo Metro LSi | 1.3 L4 GAS FI 1295cc |
| 1995 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 1995 Suzuki Esteem GLX | 1.6 L4 GAS FI 1590cc | SOHC |
| 1995 Suzuki Swift Base | 1.3 L4 GAS FI 1298cc | SOHC |
| 1996 Geo Metro LSi | 1.3 L4 GAS FI 1295cc |
| 1996 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 1996 Suzuki Esteem GLX | 1.6 L4 GAS FI 1590cc | SOHC |
| 1996 Suzuki Swift Base | 1.3 L4 GAS FI 1298cc | SOHC |
| 1997 Geo Metro LSi | 1.3 L4 GAS FI 1295cc |
| 1997 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 1997 Suzuki Esteem GLX | 1.6 L4 GAS FI 1590cc | SOHC |
| 1997 Suzuki Swift Base | 1.3 L4 GAS FI 1298cc | SOHC |
| 1998 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 1998 Suzuki Esteem GLX | 1.6 L4 GAS FI 1590cc | SOHC |
| 1998 Suzuki Swift Base | 1.3 L4 GAS FI 1298cc | SOHC |
| 1999 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 1999 Suzuki Esteem GLX | 1.6 L4 GAS FI 1590cc | SOHC |
| 1999 Suzuki Swift Base | 1.3 L4 GAS FI 1298cc | SOHC |
| 2000 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 2000 Suzuki Esteem GLX | 1.6 L4 GAS FI 1590cc | SOHC |
| 2000 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 2000 Suzuki Swift GL | 1.3 L4 GAS FI 1298cc | SOHC |
| 2001 Suzuki Esteem GL | 1.6 L4 GAS FI 1590cc | SOHC |
| 2001 Suzuki Swift GA | 1.3 L4 GAS FI 1298cc | SOHC |
| 2001 Suzuki Swift GL | 1.3 L4 GAS FI 1298cc | SOHC |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
