T1SS-MZ01 - ACT Mod-Twin 225 Heavy Duty Sprung Street Clutch Kit
Note: Flywheel requires counterweight (not included).
was
$2,538.00
Special Price
$2,157.30
SKU
T1SS-MZ01
Specifications
| Item Description | ACT Mod-Twin 225 Heavy Duty Sprung Street Clutch Kit |
|---|---|
| Product Weight (lbs.) | 28.1 |
| Torque Capacity (ft/lbs.) | 590 |
| Torque Capacity Over OE | 100% |
| Disc Material | Organic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 225 |
| Input Shaft Diameter (inches) | 1 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| SFI | 1.2 |
| UPC | 00842385027575 |
Description

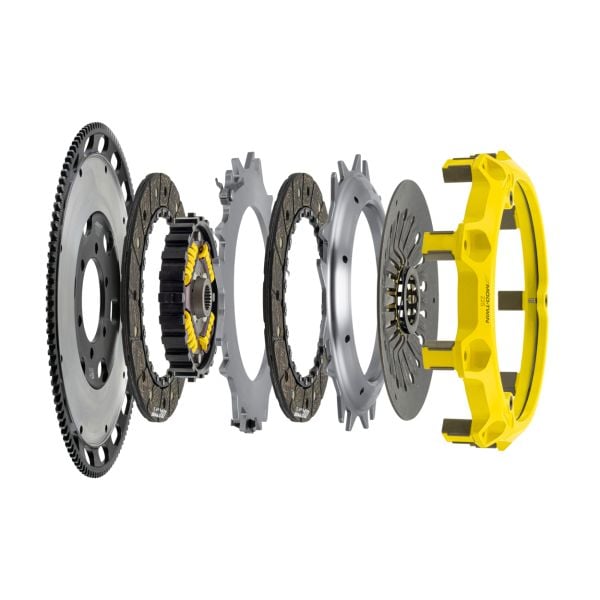

T1SS-MZ01 Mod-Twin 225 HD Sprung Street Kit is designed for high powered AWD street cars. It unites uncompromised pedal feel, durability, engagement quality with very high torque capacity by combining twice the organic friction surfaces with an ultra-durable spring center Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process providing a consistent light pedal feel. Steel-backed Friction Plates with high quality organic friction materials deliver stable friction coefficient, good heat capacity and long clutch life. These Friction Plates uniformly transfer torque to the Mono-Drive sprung hub assembly which extends input shaft life and reduces driveline shock from torsional vibration. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, sprung Mono-Drive hub assembly, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (if needed). Mod-Twin clutches are fully rebuildable and most components can be ordered separately.
| Feel | Soft progressive engagement, light pedal effort, smooth shifting with OE to mild transmission gear noise |
|---|---|
| Life | Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, premium friction materials, and hardened wear points ensure this long-life twin performs and survives under the most demanding conditions |
| Quality | Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances |
| Recommended Use | Street or Street/Strip |
| ACT Difference | Applying tactical engineering to the MOD-TWIN, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1993 Mazda RX-7 Base | 1.3 R2 GAS FI 1308cc | N/R |
| 1993 Mazda RX-7 R1 | 1.3 R2 GAS FI 1308cc | N/R |
| 1993 Mazda RX-7 Touring | 1.3 R2 GAS FI 1308cc | N/R |
| 1994 Mazda RX-7 Base | 1.3 R2 GAS FI 1308cc | N/R |
| 1994 Mazda RX-7 R2 | 1.3 R2 GAS FI 1308cc | N/R |
| 1994 Mazda RX-7 Touring | 1.3 R2 GAS FI 1308cc | N/R |
| 1995 Mazda RX-7 Base | 1.3 R2 GAS FI 1308cc | N/R |
| 1995 Mazda RX-7 R2 | 1.3 R2 GAS FI 1308cc | N/R |
| 1995 Mazda RX-7 Touring | 1.3 R2 GAS FI 1308cc | N/R |
| 1996 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 1997 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 1998 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 1999 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 2000 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 2001 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 2002 Mazda RX-7 FD [JDM] | 1.3L Rotary FI| TT |
| 1996 Mazda RX-7 FD [Euro] | 1.3L Rotary FI| TT |
| 1997 Mazda RX-7 FD [Euro] | 1.3L Rotary FI| TT |
| 1998 Mazda RX-7 FD [Euro] | 1.3L Rotary FI| TT |
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
PROP 65 WARNING
This product can expose you to chemicals including carbon black, glass wool fibers, and silica (in clutch discs), chromium and nickel, which are known to the State of California to cause cancer or birth defects or other reproductive harm. for more information, visit www.P65Warnings.ca.gov
