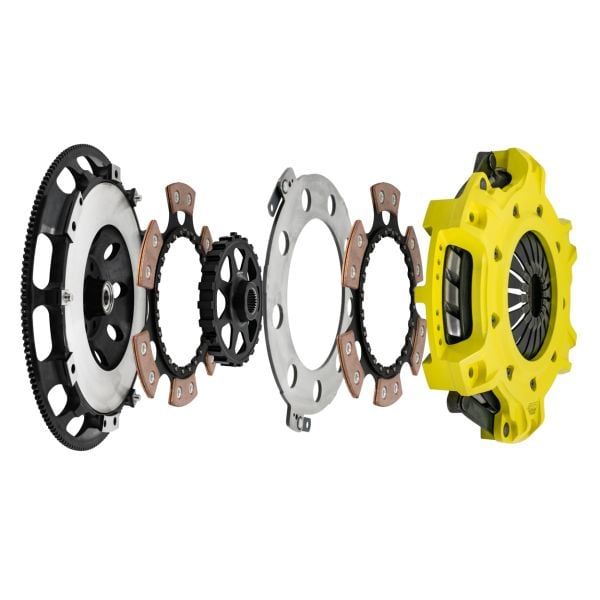

T2R-F12 Mod-Twin 10.5 XT Rigid Race Kit tackles aggressive launches and rapid shifting of high-powered machines by combining twice the ceramic friction surfaces with a no-nonsense solid Mono-Drive hub in a completely modular design. Each diaphragm spring endures an exclusive four-stage heat treating process to provide a consistent light pedal feel. Puck-style Friction Plates with high quality ceramic friction materials deliver high friction coefficient, superior heat capacity, and long clutch life. These Friction Plates uniformly transfer torque to a Mono-Drive Chromoly hub, which is heat treated for strength and durability extending input shaft life with one continuous spline. The lightweight, rigid design allows for quicker shifts and trouble-free service. This kit includes a CNC-machined and dynamically balanced flywheel, pressure plate cover, diaphragm spring, face, puck-style ceramic friction plates, rigid Mono-Drive hub, floater, patented Monoloc Collar, release bearing, alignment tool and pilot bearing (where applicable). Mod-Twin clutches are fully rebuildable, and replacement discs may be ordered separately.
Description
Feel
Predictable, aggressive engagement, light pedal effort, quick shifting, possible start-off judder with mild to moderate transmission gear noise
Life
Forged Aluminum Cover, Mono-drive hub, exclusive diaphragm, and premium friction materials ensure this long-life twin performs and survives under the most demanding conditions
Quality
Delivers maximum performance and high heat tolerance by combining robust design, strategic features, choice materials, and close tolerances
Recommended Use
Drag, Road or Rally Racing
ACT Difference
Applying tactical engineering to the Mod-Twin, ACT presents unique solutions to common tradeoffs found on twin disc clutches, resulting in an ultra-durable, customer serviceable, long-lasting clutch with very high torque capacity. All are 100% clamp load tested, balanced and SFI certified
Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within
.50 oz-in. Lower is definitely better!
Will an ACT clutch increase pedal effort?
ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the
application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
Do ACT clutches require a break in period?
For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few
hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface
glazing.
Are ACT clutches repairable or rebuildable?
In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we
do not recommend servicing by a general clutch rebuilder.
How much does an ACT clutch weigh?
The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
