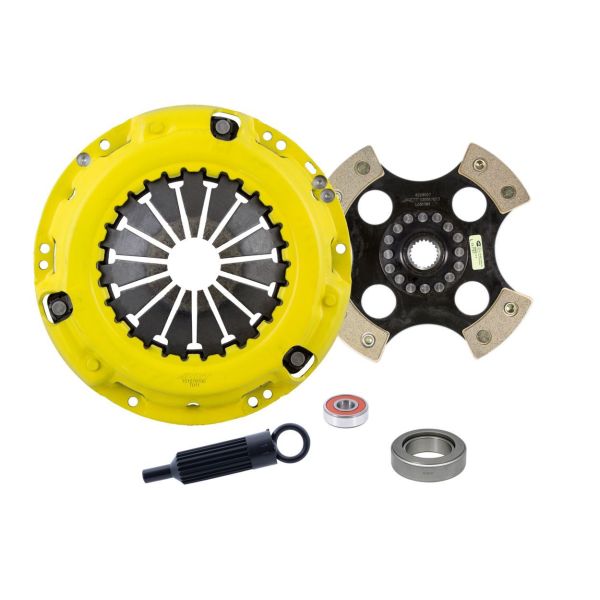

TC5-HDR4 - ACT Heavy Duty Race Rigid 4 Pad Clutch Kit
was
$521.00
Special Price
$442.85
SKU
TC5-HDR4
Specifications
| Item Description | ACT Heavy Duty Race Rigid 4 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 13.1 |
| Torque Capacity (ft/lbs.) | 355 |
| Torque Capacity Over OE | 89% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 224 |
| Input Shaft Diameter (inches) | 1.125 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| UPC | 00837055007698 |
Description
TC5-HDR4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
| Feel | Light to moderate pedal effort, aggressive engagement, increased gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for race use only |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 1977 Toyota Celica GT | 2.2 L4 GAS FI 2189cc | SOHC |
| 1977 Toyota Celica ST | 2.2 L4 GAS FI 2189cc | SOHC |
| 1977 Toyota Corona Custom | 2.2 L4 GAS FI 2189cc | SOHC |
| 1977 Toyota Corona DLX | 2.2 L4 GAS FI 2189cc | SOHC |
| 1977 Toyota Corona SR5 | 2.2 L4 GAS FI 2189cc | SOHC |
| 1978 Toyota Celica GT | 2.2 L4 GAS FI 2189cc | SOHC |
| 1978 Toyota Celica ST | 2.2 L4 GAS FI 2189cc | SOHC |
| 1978 Toyota Corona Custom | 2.2 L4 GAS FI 2189cc | SOHC |
| 1978 Toyota Corona DLX | 2.2 L4 GAS FI 2189cc | SOHC |
| 1978 Toyota Pickup Base | 2.2 L4 GAS FI 2189cc | SOHC |
| 1978 Toyota Pickup SR5 | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Celica GT | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Celica ST | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Celica Supra | 2.6 L6 GAS FI 2563cc | SOHC | Naturally Aspirated |
| 1979 Toyota Corona DLX | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Corona LE | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Pickup Base | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Pickup DLX | 2.2 L4 GAS FI 2189cc | SOHC |
| 1979 Toyota Pickup SR5 | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Celica GT | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Celica ST | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Celica Supra | 2.6 L6 GAS FI 2563cc | SOHC | Naturally Aspirated |
| 1980 Toyota Corona DLX | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Corona LE | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Pickup Base | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Pickup DLX | 2.2 L4 GAS FI 2189cc | SOHC |
| 1980 Toyota Pickup SR5 | 2.2 L4 GAS FI 2189cc | SOHC |
| 1981 Toyota Celica GT | 2.4 L4 GAS FI 2366cc | SOHC |
| 1981 Toyota Celica ST | 2.4 L4 GAS FI 2366cc | SOHC |
| 1981 Toyota Celica Supra | 2.8 L6 GAS FI 2759cc | SOHC | Naturally Aspirated |
| 1981 Toyota Corona DLX | 2.4 L4 GAS FI 2366cc | SOHC |
| 1981 Toyota Corona LE | 2.4 L4 GAS FI 2366cc | SOHC |
| 1981 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1981 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1981 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1982 Toyota Celica GT | 2.4 L4 GAS FI 2366cc | SOHC |
| 1982 Toyota Celica ST | 2.4 L4 GAS FI 2366cc | SOHC |
| 1982 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1982 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1982 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1983 Toyota Celica GT | 2.4 L4 GAS FI 2366cc | SOHC |
| 1983 Toyota Celica GTS | 2.4 L4 GAS FI 2366cc | SOHC |
| 1983 Toyota Celica ST | 2.4 L4 GAS FI 2366cc | SOHC |
| 1983 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1983 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1983 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1984 Toyota 4Runner DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1984 Toyota 4Runner SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1984 Toyota Celica GT | 2.4 L4 GAS FI 2366cc | SOHC |
| 1984 Toyota Celica GTS | 2.4 L4 GAS FI 2366cc | SOHC |
| 1984 Toyota Celica ST | 2.4 L4 GAS FI 2366cc | SOHC |
| 1984 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1984 Toyota Pickup DLX | 2.4 L4 GAS FI 2446cc | SOHC | Naturally Aspirated |
| 1984 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1984 Toyota Pickup LN56 | 2.4 L4 GAS FI 2446cc | SOHC | Naturally Aspirated |
| 1984 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1984 Toyota Van Wagon Crg | 2.0 L4 GAS FI 1998cc | OHV |
| 1984 Toyota Van Wagon DX | 2.0 L4 GAS FI 1998cc | OHV |
| 1984 Toyota Van Wagon LE | 2.0 L4 GAS FI 1998cc | OHV |
| 1985 Toyota 4Runner DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1985 Toyota 4Runner SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1985 Toyota Celica GT | 2.4 L4 GAS FI 2366cc | SOHC |
| 1985 Toyota Celica GTS | 2.4 L4 GAS FI 2366cc | SOHC |
| 1985 Toyota Celica ST | 2.4 L4 GAS FI 2366cc | SOHC |
| 1985 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1985 Toyota Pickup DLX | 2.4 L4 GAS FI 2446cc | SOHC | Naturally Aspirated |
| 1985 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1985 Toyota Pickup RN60 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1985 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1985 Toyota Van Wagon Crg | 2.0 L4 GAS FI 1998cc | OHV |
| 1985 Toyota Van Wagon DX | 2.0 L4 GAS FI 1998cc | OHV |
| 1985 Toyota Van Wagon LE | 2.0 L4 GAS FI 1998cc | OHV |
| 1986 Toyota 4Runner DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1986 Toyota 4Runner SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1986 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1986 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1986 Toyota Pickup LN55 DLX | 2.4 L4 GAS FI 2466cc | U/K | Naturally Aspirated |
| 1986 Toyota Pickup LN76 | 2.4 L4 GAS FI 2466cc | U/K | Naturally Aspirated |
| 1986 Toyota Pickup RN63 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1986 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1986 Toyota Van Wagon Crg | 2.2 L4 GAS FI 2237cc | OHV |
| 1986 Toyota Van Wagon DX | 2.2 L4 GAS FI 2237cc | OHV |
| 1986 Toyota Van Wagon LE | 2.2 L4 GAS FI 2237cc | OHV |
| 1987 Toyota 4Runner DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1987 Toyota 4Runner SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1987 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1987 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1987 Toyota Pickup LN55 DLX | 2.4 L4 GAS FI 2466cc | U/K | Naturally Aspirated |
| 1987 Toyota Pickup RN63 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1987 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1987 Toyota Van Wagon Crg | 2.2 L4 GAS FI 2237cc | OHV |
| 1987 Toyota Van Wagon DX | 2.2 L4 GAS FI 2237cc | OHV |
| 1987 Toyota Van Wagon LE | 2.2 L4 GAS FI 2237cc | OHV |
| 1988 Toyota 4Runner DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1988 Toyota 4Runner SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1988 Toyota Pickup Base | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1988 Toyota Pickup DLX | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1988 Toyota Pickup SR5 | 2.4 L4 GAS FI 2366cc | SOHC | Naturally Aspirated |
| 1988 Toyota Van Wagon Crg | 2.2 L4 GAS FI 2237cc | OHV |
| 1988 Toyota Van Wagon DX | 2.2 L4 GAS FI 2237cc | OHV |
| 1988 Toyota Van Wagon LE | 2.2 L4 GAS FI 2237cc | OHV |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
