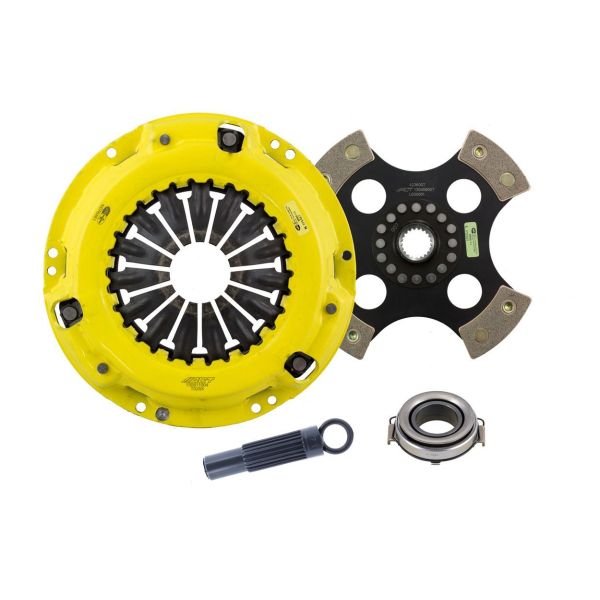

TC7-XTR4 - ACT Extreme Race Rigid 4 Pad Clutch Kit
was
$705.00
Special Price
$599.25
SKU
TC7-XTR4
Specifications
| Item Description | ACT Extreme Race Rigid 4 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 13.5 |
| Torque Capacity (ft/lbs.) | 500 |
| Torque Capacity Over OE | 106% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 9.3 |
| Clutch Disc Diameter (Millimeters) | 236 |
| Input Shaft Diameter (inches) | 1.125 |
| Pressure Plate Type | Xtreme |
| Warranty | 12 Months (view details) |
| UPC | 00842385019280 |
Description
TC7-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.
| Feel | Moderate to heavy pedal effort, aggressive engagement, increased gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for race use only |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability |
Vehicle Fitment
| Application | Engine |
|---|---|
| 2006 Scion tC Base | 2.4 L4 GAS FI 2362cc |
| 2007 Scion tC Base | 2.4 L4 GAS FI 2362cc |
| 2007 Scion tC Spec | 2.4 L4 GAS FI 2362cc |
| 2008 Scion tC Base | 2.4 L4 GAS FI 2362cc |
| 2008 Scion tC Spec | 2.4 L4 GAS FI 2362cc |
| 2008 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2009 Scion tC Base | 2.4 L4 GAS FI 2362cc |
| 2009 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2009 Toyota Corolla XRS | 2.4 L4 GAS FI 2362cc |
| 2009 Toyota Matrix S | 2.4 L4 GAS FI 2362cc |
| 2009 Toyota Matrix XR | 2.4 L4 GAS FI 2362cc |
| 2009 Toyota Matrix XRS | 2.4 L4 GAS FI 2362cc |
| 2010 Scion tC Base | 2.4 L4 GAS FI 2362cc |
| 2010 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2010 Toyota Corolla XRS | 2.4 L4 GAS FI 2362cc |
| 2010 Toyota Matrix S | 2.4 L4 GAS FI 2362cc |
| 2010 Toyota Matrix XR | 2.4 L4 GAS FI 2362cc |
| 2010 Toyota Matrix XRS | 2.4 L4 GAS FI 2362cc |
| 2011 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2011 Toyota Corolla XRS | 2.4 L4 GAS FI 2362cc |
| 2011 Toyota Matrix S | 2.4 L4 GAS FI 2362cc |
| 2011 Toyota Matrix XRS | 2.4 L4 GAS FI 2362cc |
| 2012 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2012 Toyota Corolla XRS | 2.4 L4 GAS FI 2362cc |
| 2012 Toyota Matrix S | 2.4 L4 GAS FI 2362cc |
| 2012 Toyota Matrix XRS | 2.4 L4 GAS FI 2362cc |
| 2013 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2013 Toyota Matrix S | 2.4 L4 GAS FI 2362cc |
| 2013 Toyota Matrix XRS | 2.4 L4 GAS FI 2362cc |
| 2014 Scion xB Base | 2.4 L4 GAS FI 2362cc |
| 2015 Scion xB Base | 2.4 L4 GAS FI 2362cc |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
