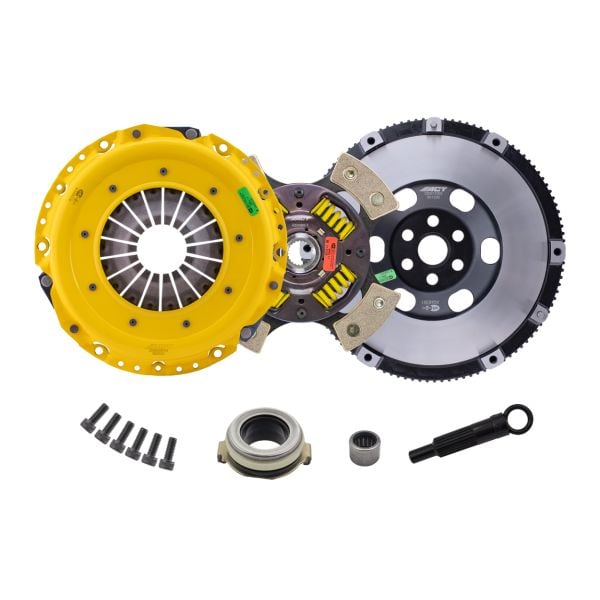

ZM14-HDG4 - ACT Heavy Duty Race Sprung 4 Pad Clutch Kit
Note: Must be used with ACT flywheel (included in kit). Pressure plate bolts included (M8-1.25 x 20mm).
was
$1,265.00
Special Price
$1,075.25
SKU
ZM14-HDG4
Specifications
| Item Description | ACT Heavy Duty Race Sprung 4 Pad Clutch Kit |
|---|---|
| Product Weight (lbs.) | 30.3 |
| Torque Capacity (ft/lbs.) | 399 |
| Torque Capacity Over OE | 87% |
| Disc Material | Ceramic |
| Clutch Disc Diameter (Inches) | 8.8 |
| Clutch Disc Diameter (Millimeters) | 224 |
| Input Shaft Diameter (inches) | 0.9375 |
| Pressure Plate Type | Heavy Duty |
| Warranty | 12 Months (view details) |
| UPC | 00842385028114 |
Description
ZM14-HDG4 kit features ACT's most popular Heavy Duty pressure plate. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.
| Feel | Light to moderate pedal effort, aggressive engagement, OE to mild gear rattle |
|---|---|
| Life | Moderate friction life, extended by ACT's exclusive diaphragm design |
| Quality | Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance |
| Recommended Use | Recommended for high horsepower street or race use |
| ACT Difference | 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability. |
Vehicle Fitment
| Application | Engine |
|---|---|
| 2019 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata 100th Anniversary Special Edition | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata RF 100th Anniversary Special Edition | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2020 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata 100th Anniversary Special Edition | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata RF 100th Anniversary Special Edition | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2021 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2022 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2023 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2024 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata 35th Anniversary | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata GS | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata RF Club | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata RF GS-P | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata RF GT | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata RF Grand Touring | 2.0 L4 GAS FI 1998cc | DOHC |
| 2025 Mazda MX-5 Miata Sport | 2.0 L4 GAS FI 1998cc | DOHC |
| 2019 Mazda MX-5 ND [Euro] | 2.0L I4 FI| NA |
| 2020 Mazda MX-5 ND [Euro] | 2.0L I4 FI| NA |
| 2021 Mazda MX-5 ND [Euro] | 2.0L I4 FI| NA |
| 2022 Mazda MX-5 ND [Euro] | 2.0L I4 FI| NA |
| 2023 Mazda MX-5 ND [Euro] | 2.0L I4 FI| NA |
| 2024 Mazda MX-5 ND [Euro] | 2.0L I4 FI| NA |
Kit Contents:
Frequently Asked Questions
- Are ACT clutches balanced?
- Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
- Will an ACT clutch increase pedal effort?
- ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
- Do ACT clutches require a break in period?
- For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
- Are ACT clutches repairable or rebuildable?
- In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
- How much does an ACT clutch weigh?
- The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
