PO1-XTR6 - ACT Extreme Race Rigid 6 Pad Clutch Kit

Loading...

Select Your Vehicle

was $1,393.00 Special Price $1,184.05
SKU
PO1-XTR6

Specifications

Specifications
Item Description ACT Extreme Race Rigid 6 Pad Clutch Kit
Product Weight (lbs.) 13.8
Torque Capacity (ft/lbs.) 1010
Torque Capacity Over OE 91%
Disc Material Ceramic
Clutch Disc Diameter (Inches) 9.4
Clutch Disc Diameter (Millimeters) 240
Input Shaft Diameter (inches) 1
Pressure Plate Type Xtreme
Warranty 12 Months (view details)

Description

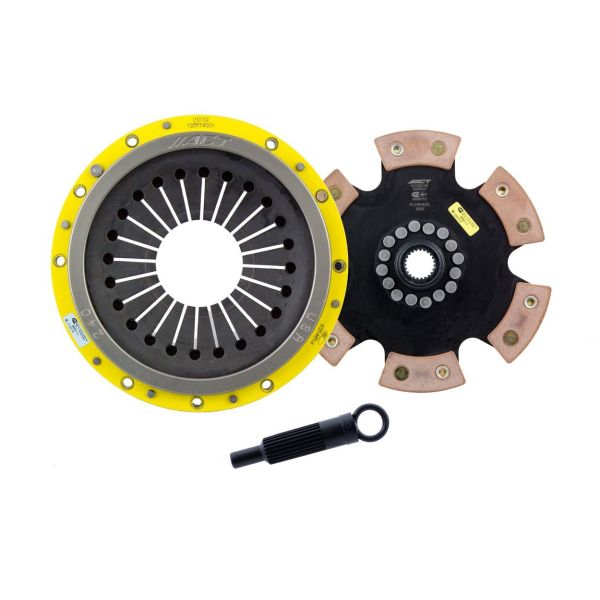

PO1-XTR6 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 6-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 6-pad rigid race disc, engagement is harsher, but shifting is faster. The 6-pad rigid race disc is recommended for larger clutch sizes to absorb more heat.

Description
Feel Moderate to heavy pedal effort, aggressive engagement, increased gear rattle
Life Moderate friction life, extended by ACT's exclusive diaphragm design, rigid design may increase spline wear
Quality Carefully engineered, precisely assembled, accurately balanced, uses select ceramic friction materials for high heat tolerance and maximum performance
Recommended Use Recommended for race use only
ACT Difference 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability

Vehicle Fitment

Fitment Info
Application Engine
1991 Porsche 911 Carrera 2 3.6 H6 GAS FI 3606cc
1991 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1991 Porsche 911 Turbo 3.3 H6 GAS FI 3294cc
1992 Porsche 911 Carrera 2 3.6 H6 GAS FI 3606cc
1992 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1992 Porsche 911 Turbo 3.3 H6 GAS FI 3294cc
1993 Porsche 911 Carrera 2 3.6 H6 GAS FI 3606cc
1993 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1993 Porsche 911 Turbo 3.6 3.6 H6 GAS FI 3606cc
1994 Porsche 911 Carrera 2 3.6 H6 GAS FI 3606cc
1994 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1994 Porsche 911 Speedster 3.6 H6 GAS FI 3606cc
1994 Porsche 911 Turbo 3.6 3.6 H6 GAS FI 3606cc
1995 Porsche 911 Carrera 3.6 H6 GAS FI 3606cc
1995 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1996 Porsche 911 Carrera 3.6 H6 GAS FI 3606cc
1996 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1996 Porsche 911 Targa 3.6 H6 GAS FI 3606cc
1996 Porsche 911 Turbo 3.6 H6 GAS FI 3606cc
1997 Porsche 911 Carrera 3.6 H6 GAS FI 3606cc
1997 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1997 Porsche 911 Carrera 4S 3.6 H6 GAS FI 3606cc
1997 Porsche 911 Targa 3.6 H6 GAS FI 3606cc
1997 Porsche 911 Turbo 3.6 H6 GAS FI 3606cc
1998 Porsche 911 Carrera 3.6 H6 GAS FI 3606cc
1998 Porsche 911 Carrera 4 3.6 H6 GAS FI 3606cc
1998 Porsche 911 Carrera 4S 3.6 H6 GAS FI 3606cc
1998 Porsche 911 Carrera S 3.6 H6 GAS FI 3606cc
1998 Porsche 911 Targa 3.6 H6 GAS FI 3606cc

Frequently Asked Questions

Are ACT clutches balanced?
Yes! All ACT clutch assemblies are computer spin balanced to within .25 oz-in to guarantee help smooth operation across the entire RPM range. For comparison, stock production clutches are typically balanced to within .50 oz-in. Lower is definitely better!
Will an ACT clutch increase pedal effort?
ACT pressure plates are specifically designed to handle high torque applications. With ACT's durable design, expect an increase in pedal effort between 15-40% (Heavy Duty) and 50-80% (Xtreme), depending on the application. Clutches developed with less pedal effort often result in a lack of longevity, torque capacity and/or engagement quality.
Do ACT clutches require a break in period?
For organic street discs, we recommend breaking in the clutch for 300-500 miles with mild engagement, such as stop-and-go city driving prior to racing or spirited driving. ACT race discs usually only require a few hard slips to lap in the surfaces prior to normal driving or racing. Do not overheat the clutch during the break in period, as this can result in friction surfaces fusing together, hot spots, and friction surface glazing.
Are ACT clutches repairable or rebuildable?
In some situations, rebuilds or repairs may be possible (see warranty), after inspection of the clutch assembly. Please contact our technical department for further information. Because of special modifications, we do not recommend servicing by a general clutch rebuilder.
How much does an ACT clutch weigh?
The weight of the ACT clutch assembly will usually be the same as a stock OEM clutch assembly.
